Fuel injection pumps

Inline, rotary, common rail and PT pumps for excavator and industrial diesel engines. Every complete pump is flow-tested on a calibrated bench before it leaves the factory.

Inline pumps

A, AD, P3000, P7100, P8500

Rotary pumps

VE4, VE6, DPA, DPC, DP200

Common rail

CP1, CP2, CP3, CP4, HP0

PT / unit pumps

PT, PTG, PTG-AFC

Inline pumps

A and AD type

The workhorse pump on older and mid-generation excavator engines. Simple, rebuildable and still produced in very large volumes across Asia.

SeriesPlunger ØCylindersTypical enginesNotes
A type8 / 9 / 10 mm4 / 6Isuzu 4JB1, Yanmar 4TNV98Mechanical governor
AD type9 / 10 / 11 mm4 / 6Isuzu 4BD1, 6BD1Rq / Rsv governor options
P300010 / 11 mm6Cummins 6BTBosch P series
P710011 / 12 mm6Cummins 6CT, CAT 3306High-pressure, boost-controlled
P850012 / 13 mm6Cummins N14, M11Heavy-duty, high flow
Rotary pumps

VE, DPA and DPC distributor pumps

Compact single-plunger distributor pumps for 4 and 6 cylinder engines. We supply complete units as well as the head rotor and vane pump inside them.

SeriesPlunger ØCylindersTypical enginesNotes
VE4/10F, VE4/11F10 / 11 mm4Isuzu 4JB1, Mitsubishi 4D56Mechanical or electronic
VE4/12F12 mm4Cummins 4BTHigh-flow variant
VE6/10F, VE6/11F10 / 11 mm6Cummins 6BT, Isuzu 6BG1With or without KSB
DPASingle plunger3 / 4 / 6Perkins 4.236, Ford 6610CAV / Lucas licence type
DPC / DP200Single plunger4 / 6JCB, Perkins 1000 seriesLater DPA evolution
Common rail

CP1 to CP4 and HP0 high-pressure pumps

The pump that fails most on modern excavators — usually from contaminated fuel rather than wear. We supply complete units and the SCV / metering valve that is normally the actual culprit.

ModelReference familyPressureTypical enginesAlso supply
CP10445010xxxup to 1,600 barLight commercial, 4 cylSCV, seal kit
CP20445021xxxup to 1,800 barMedium duty 4–6 cylSCV, seal kit
CP30445020xxxup to 2,000 barCummins QSB, CAT C6.6SCV, inlet metering valve
CP40445025xxxup to 2,500 barModern 4–6 cyl common railSCV, seal kit
HP0094000-xxxup to 1,800 barDenso heavy-duty systemsSCV, rail components
Also available

Cummins PT and unit pumps

PT fuel systems are still everywhere in mining and quarry fleets. We supply complete PT and PTG pumps, the AFC diaphragm assembly, and the shut-off and throttle shafts that wear out first.

  • PT, PTG and PTG-AFC complete pumps
  • AFC diaphragm and plunger assemblies
  • Throttle shaft, shut-off valve, check valve
  • Rebuild kits with gaskets and seals
Ask about PT parts →

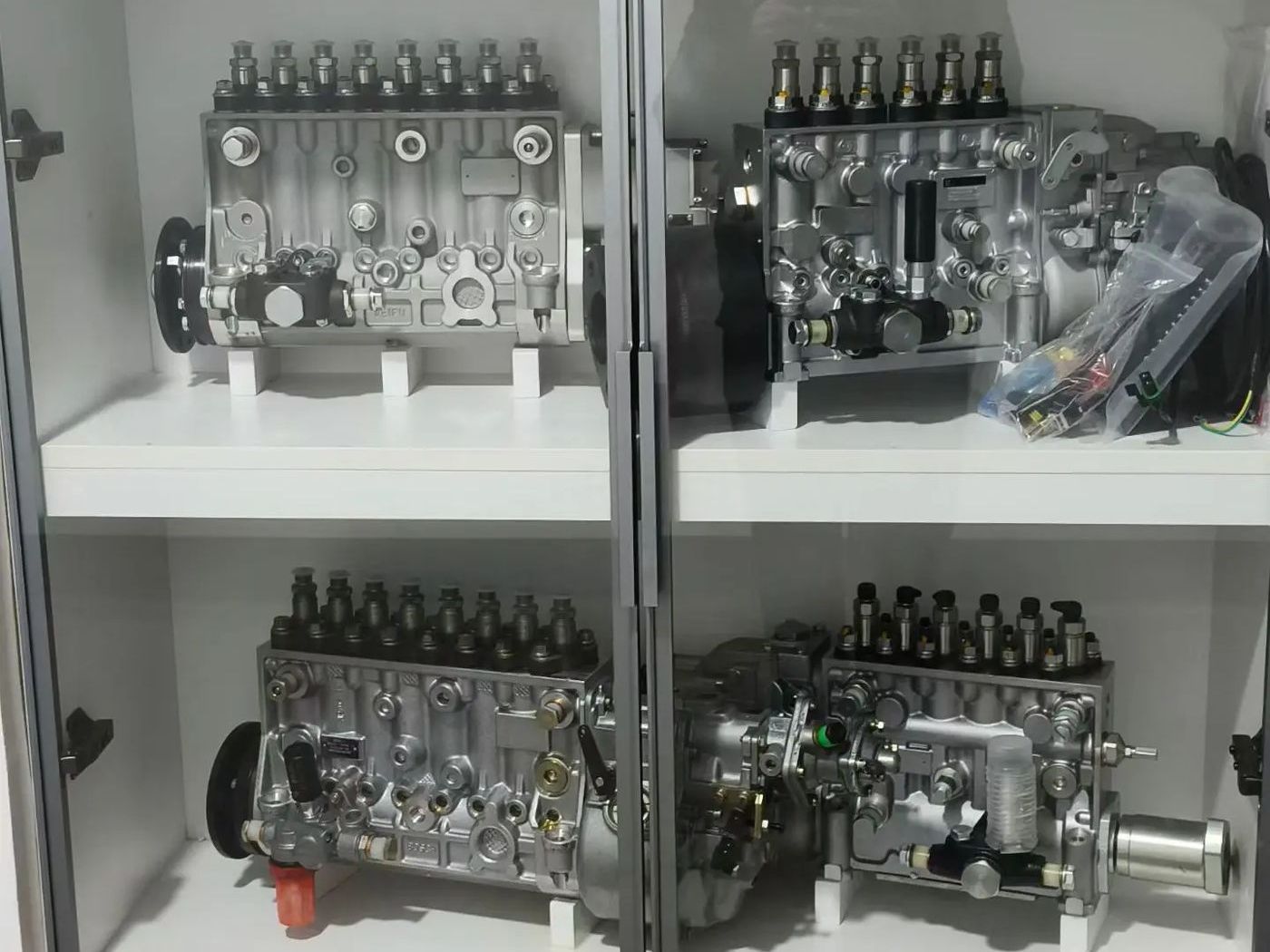

Shelves of reconditioned and new fuel injection pumps in stock

Specifications

  • Systems coveredInline, rotary, common rail, PT
  • Cylinder range2 to 6
  • Plunger diameter6 mm to 13 mm
  • Max. injection pressureup to 2,500 bar (CP4)
  • Governor typesMechanical, Rq, Rsv, electronic
  • Test standardFlow and pressure at 8 points
  • Warranty3 months

Ordering & delivery

  • Minimum order1 pc for stock items
  • Stock lead time1–3 working days
  • Production lead time3–7 working days
  • PackingNeutral carton or your brand
  • PaymentT/T, Western Union, Trade Assurance
  • ShippingDHL / FedEx / UPS door to door
  • DocumentationCommercial invoice, packing list, CO
Applications

Machines we already supply for

MachineEnginePump family
CAT 320D, 320CC6.4 ACERTCommon rail CP3 type
CAT 330D, 336DC9 ACERTCommon rail, HP type
Komatsu PC200-8SAA6D107E-1Common rail CP3 type
Komatsu PC300-7SAA6D114EInline P type
Hitachi ZX200, EX200-54HK1, 6BG1Common rail / inline AD
Kobelco SK200-8J05ECommon rail CP3 type
Doosan DH220-5, DX225DB58T, DE08TISInline / common rail
Hyundai R225-9Cummins QSB6.7Common rail CP3
Volvo EC210BD6D, D6EInline VE / common rail
Cummins 6BT, 6CT—VE rotary / P7100

Machine references are for compatibility guidance only. Always confirm against the engine serial number before ordering.

Sample stock list

Real pump part numbers from our catalog

A cross-section of the pump numbers we move most, from the 2,900+ lines in our current stock and production catalog.

OEM No.Our ref.EngineApplication
4001685—ISX15 QSX15—
3708363294000-1381VISTA-EINDUSTRIAL
1861200BEBU4B00200—DAF MX US2010
131017551131406220C2.2—
4008848—ISX15 QSX15—
3708364294000-1391VISTA-EINDUSTRIAL
1827043BEBU4B00000 BEBU4B00100 BEBU4B00200—DAF MX US2010
1G852-51012—C2.4—
4076574—ISX15 QSX15—
368-9040294050-0511VISTA-EINDUSTRIAL
1625753BEBU5A00000—DAF MX EUROPE
1G881-51011—C2.4—
4024766—ISX15 QSX15—
368-9041294050-0520VISTA-EINDUSTRIAL
1668325BEBU5A00000—DAF MX EUROPE
1G922-51012—C2.4—
4089431—ISX15 QSX15—
368-9041294050-0521VISTA-EINDUSTRIAL
2135456BEBU5A00000—DAF MX EUROPE
1G796-51011—C2.4—
3348700—ISX15 QSX15—
1GB52-51012—V2403306E2
G6000-1111100BEBU5A01000 BEBU5A02000—YUCHAI TRUCK APPLICATIONS
1G777-51013—C2.6—
3348701—ISX15 QSX15—
1B881-51011—V2403—
1871117BEBU2C00000 BEBU2C00100 BEBU2C00200 BEBU2C00300 BEBU2C00400 BEBU2C00500—DAF MX US13/EURO 6
1J730-51011—C2.6—
4076596—ISX15 QSX15—
1G922-510121G730-53002V2403CAT C2.4
1934322BEBU2C00000 BEBU2C00100 BEBU2C00200 BEBU2C00300 BEBU2C00400 BEBU2C00500—DAF MX US13/EURO 6
131017590—3013C—
4088847—ISX15 QSX15—
1G796-510111G796-53001V2403—
2034927BEBU2C00000 BEBU2C00100 BEBU2C00200 BEBU2C00300 BEBU2C00400 BEBU2C00500—DAF MX US13/EURO 6
131017591—3013C—

This is a sample of the printed catalog we ship with every quotation. Send your part number or engine plate photo and we will confirm exact match, price and stock within 12 working hours.

Need a pump for a specific engine?

Send the engine model and serial number range — we will confirm the correct pump and any superseded part numbers.
